Model |
Voltage VAC
|
Freq. Hz
|
Current A
|
Power W
|
Speed rpm
|
Pressure mmAq
|
Air Flow CFM
|
Noise dB
|
|
|
High Speed |
|
|
|
|
|
|
|
|
|
|
A8038-V1HBxP |
115 |
50 / 60 |
0.20 / 0.15 |
14.0 / 9.5 |
2400 / 2900 |
3.3 / 4.8 |
24 / 31 |
31 / 35 |
|
|
A8038-V2HBxP |
220 |
50 / 60 |
0.11 / 0.08 |
17.0 / 11.5 |
2400 / 2900 |
3.3 / 4.8 |
24 / 31 |
31 / 35 |
|
|
A8038-V1HSxP |
115 |
50 / 60 |
0.20 / 0.15 |
14.0 / 9.5 |
2400 / 2900 |
3.3 / 4.8 |
24 / 31 |
31 / 35 |
|
|
A8038-V2HSxP |
220 |
50 / 60 |
0.11 / 0.08 |
17.0 / 11.5 |
2400 / 2900 |
3.3 / 4.8 |
24 / 31 |
31 / 35 |
|
x : T (Terminals) , L (Lead Wire)
多款風機有售，全新原裝正品，歡迎點擊?恒瑞宏晟

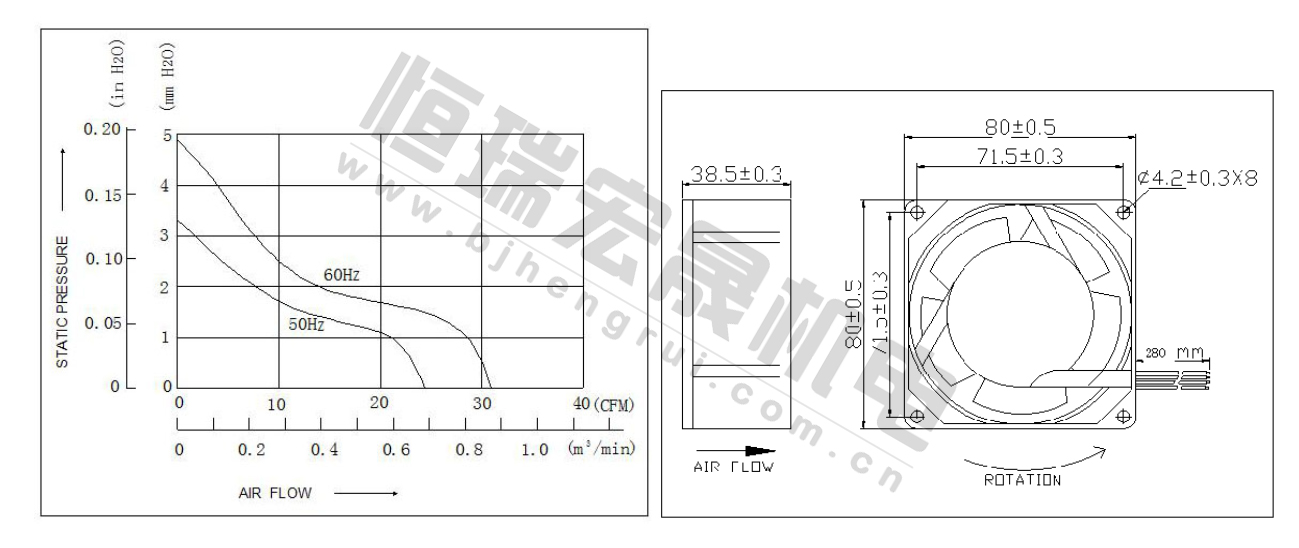

| SIZE | 80x80x38 |
| MATERIAL | Aluminum Housing, Plastic Impeller |
| BEARINGS | Maintenance-Free Ball Bearings |
| MOTOR TYPE | AC shaded-pole motor |
| CONNECTION | Terminals or Lead wire |
| DIELECTRIC STRENGTH | 1800 VAC for 1 Sec. |
| INSULATION RESISTANCE | 100 MΩ min.@500VDC |
| OPERATING TEMPERATURE | -30℃ to +75℃ (Ball Bearing) |
| -10℃ to +70℃ (Sleeve Bearing) | |
| TYPE OF PROTECTION | Insulation Class B |
| SAFETY | Impedance Protected |
| WEIGHT | |
| ROHS COMPLIANCE | Yes |
